降雨検知システムを作る4 後編1

#include <Arduino.h>
#include <WiFi.h>
#include <PubSubClient.h>
#include <Preferences.h>
#include <OneWire.h>
#include <DallasTemperature.h>
#include <driver/i2s.h>
#include <math.h>

// =====================================
// 時分割（タイムスライス）設定
// =====================================
#define MEASURE_PERIOD  55000UL  // 計測モードの時間 (ミリ秒) -> 55秒
#define WIFI_PERIOD     6000UL   // WiFi通信モードの時間 (ミリ秒) -> 6秒

// 20msごとのデータを55秒分蓄積するためのバッファサイズ
#define MAX_HISTORY 2000

struct DataPoint {
    float diff;
    float temp;
};

DataPoint history[MAX_HISTORY];
int historyCount = 0;

// 状態管理用
enum SystemMode { MODE_MEASURE, MODE_WIFI };
SystemMode currentMode = MODE_MEASURE;
unsigned long modeStartTime = 0;
bool mqttSentInThisPeriod = false;

// =====================================
// 周波数・同期検波設定
// =====================================
#define TARGET_FREQ     10000   // 10kHz完全同調
#define SAMPLE_RATE     (TARGET_FREQ * 16)
#define BLOCK_SIZE      1024

#define ADC_CH          ADC1_CHANNEL_4 // GPIO32 (入力)
#define PWM_PIN         25             // GPIO25 (LEDC波形出力)

// 参照波（16ステップ周期）
const int32_t ref_sine[] = {
   0,  49,  90, 117, 127, 117,  90,  49,
   0, -49, -90,-117,-127,-117, -90, -49
};
const int32_t ref_cosine[] = {
 127, 117,  90,  49,   0, -49, -90,-117,
-127,-117, -90, -49,   0,  49,  90, 117
};

// =====================================
// WiFi / MQTT 設定
// =====================================
const char* ssid = "your_ssid";
const char* password = "your_passwd";
const char* mqtt_server = "192.168.1.200";//Set Your MQTT Server Address

WiFiClient espClient;
PubSubClient client(espClient);

const char* pubTopic = "rain_sensor/time_div10/data";
const char* topicLearn = "rain_sensor/time_div10/learning";
const char* topicRainth = "rain_sensor/time_div10/rainth";
const char* topicHeater = "rain_sensor/time_div10/heater";
const char* topicHeaterth = "rain_sensor/time_div10/heaterth";
const char* topicDryth = "rain_sensor/time_div10/dryth";
const char* topicReset = "rain_sensor/time_div10/reset";

// =====================================
// PIN設定
// =====================================
#define TEMP_PIN     23   // DS18B20 温度計用
#define HEATER_PIN   22   // ヒーター制御用

// =====================================
// オブジェクト・データ共有変数
// =====================================
OneWire oneWire(TEMP_PIN);
DallasTemperature sensors(&oneWire);
Preferences prefs;
portMUX_TYPE dataMux = portMUX_INITIALIZER_UNLOCKED;

uint16_t rx_buffer[BLOCK_SIZE];
volatile float shared_amplitude = 0.0;

float raw = 0;
float diff = 0;
float filtered = 0;
float baseline = 1350;
float noise_floor = 0;
float rain_mmph = 0;
float temperature = 0;
float rainth = 60;
float heaterth = 50;

int heaterPower = 0;
bool raining = false;
bool learning = false;
bool autoHeater = false;
unsigned long heaterOffStart = 0;
float dryth = 38;
unsigned long elapsed = 0;
unsigned long remain_min = 0;

// =====================================
// 起動安定化時間
// =====================================
#define WARMUP_TIME 900000UL // 15分
unsigned long bootTime = 0;
bool systemReady = false;

// タスク制御用フラグ
TaskHandle_t dspTaskHandle = NULL;
volatile bool dspTaskRunning = false;
volatile bool dspPauseRequest = false;
volatile bool dspIsPaused = false;

void saveBaseline() {
    prefs.begin("rain_gauge", false);
    prefs.putFloat("baseline", baseline);
    prefs.end();
}

void loadAll() {
    prefs.begin("rain_gauge", true);
    rainth = prefs.getFloat("rainth", 60.0);
    heaterth = prefs.getFloat("heaterth", 50.0);
    heaterPower = prefs.getInt("hpower", 0);
    baseline = prefs.getFloat("baseline", 1350.0);
    dryth = prefs.getFloat("dryth", 38.0);
    prefs.end();

    if (isnan(rainth)) rainth = 60;
    if (isnan(heaterth)) heaterth = 50;
    if (isnan(dryth)) dryth = 38;
    if (isnan(baseline) || baseline < 100 || baseline > 4000) {
        baseline = 1350;
    }
    if (heaterPower < 0 || heaterPower > 100) heaterPower = 0;
}

// =====================================
// 信号処理・雨判定ロジック群
// =====================================
float processSignal(float v){
    filtered = filtered * 0.95f + v * 0.05f;
    if(learning){
        baseline = filtered;
        saveBaseline();
        learning = false;
    }
    float d = fabs(filtered - baseline);
    noise_floor = noise_floor * 0.995f + d * 0.005f;
    return d;
}

bool detectRain(float d){
    if(d > rainth) return true;
    if(d < (rainth * 0.4f)) return false;
    return raining;
}

float calcRain(float d){
    if(!raining) return 0;
    float x = d - noise_floor;
    if(x < 0) x = 0;
    float y = 0.015f * powf(x, 1.15f);
    if(y < 0.03f) y = 0;
    return y;
}

void heaterControl(){
    int duty = autoHeater ? heaterPower : 0;
    const uint32_t period = 4000;
    uint32_t onTime = (period * duty) / 100;
    uint32_t t = millis() % period;
    digitalWrite(HEATER_PIN, (t < onTime));
}


void autoLogic(float d){
    raining = detectRain(d);
    if(d > heaterth){
        autoHeater = true;
        heaterOffStart = 0;
        remain_min = 15; // 判定ラインを超えている間は常に「残り15分」を維持
    }

    if(autoHeater && d <= dryth){
        if(!heaterOffStart){
            heaterOffStart = millis();
            remain_min = 15;
        }
        else {
            elapsed = millis() - heaterOffStart;

            if (elapsed < 900000UL) {
                remain_min = (900000UL - elapsed) / 60000UL + 1;
                if (remain_min > 15) remain_min = 15; // 上限ガード
            } else {
                remain_min = 0;
            }

            if(elapsed > 900000UL){
                autoHeater = false;
                heaterOffStart = 0;
                remain_min = 0; // タイマー満了時は0分
            }
        }
    }

    // ヒーター自体が動いていない場合は確実に0にする
    if(!autoHeater) {
        remain_min = 0;
    }
}


// =====================================
// WiFi & MQTT 接続・切断処理
// =====================================
void setupWiFi(){
    WiFi.config(IPAddress(192,168,1,100), IPAddress(192,168,1,1), IPAddress(255,255,255,0));//Set Your IP Address
    WiFi.begin(ssid, password);
    int timeout = 0;
    while(WiFi.status() != WL_CONNECTED && timeout < 12){
        delay(500);
        timeout++;
    }
}

void disconnectWiFi() {
    if (client.connected()) {
        client.disconnect();
    }
    WiFi.disconnect(true);
    WiFi.mode(WIFI_OFF);
}

void reconnect(){
    if (WiFi.status() != WL_CONNECTED) {
        setupWiFi();
    }
    int timeout = 0;
    while(!client.connected() && timeout < 3){
        if(client.connect("time_div10_rain_sensor")){
            client.subscribe(topicLearn);
            client.subscribe(topicRainth);
            client.subscribe(topicHeater);
            client.subscribe(topicHeaterth);
            client.subscribe(topicDryth);
            client.subscribe(topicReset);
        } else {
            delay(500);
            timeout++;
        }
    }
}

void callback(char* topic, byte* payload, unsigned int length){
    String msg;
    for(uint32_t i = 0; i < length; i++){ msg += (char)payload[i]; }
    prefs.begin("rain_gauge", false);
    if(!strcmp(topic, topicLearn)){ if(msg == "1") learning = true; }
    else if(!strcmp(topic, topicRainth)){ int v = msg.toInt(); if(v >= 0 && v <= 100){ rainth = v; prefs.putFloat("rainth", rainth); }}
    else if(!strcmp(topic, topicHeater)){ int v = msg.toInt(); if(v >= 0 && v <= 100){ heaterPower = v; prefs.putInt("hpower", heaterPower); }}
    else if(!strcmp(topic, topicHeaterth)){ int v = msg.toInt(); if(v >= 0 && v <= 100){ heaterth = v; prefs.putFloat("heaterth", heaterth); }}
    else if(!strcmp(topic, topicDryth)){ int v = msg.toInt(); if(v >= 0 && v <= 50){ dryth = v; prefs.putFloat("dryth", dryth); }}
    else if(!strcmp(topic, topicReset)){ prefs.end(); ESP.restart(); }
    prefs.end();
}

// =====================================
// PWM / I2S ハードウェア制御 (開始・停止)
// =====================================
void startMeasurement() {
    if (dspTaskRunning) return;
    ledcSetup(0, TARGET_FREQ, 8);
    ledcAttachPin(PWM_PIN, 0);
    ledcWrite(0, 128);
    adc1_config_channel_atten(ADC_CH, ADC_ATTEN_DB_11);

    i2s_config_t i2s_config = {
        .mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX | I2S_MODE_ADC_BUILT_IN),
        .sample_rate = SAMPLE_RATE,
        .bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,
        .channel_format = I2S_CHANNEL_FMT_ONLY_RIGHT,
        .communication_format = I2S_COMM_FORMAT_STAND_I2S,
        .intr_alloc_flags = ESP_INTR_FLAG_LEVEL1,
        .dma_buf_count = 4,
        .dma_buf_len = BLOCK_SIZE,
        .use_apll = false,
        .tx_desc_auto_clear = false,
        .fixed_mclk = 0
    };
    i2s_driver_install(I2S_NUM_0, &i2s_config, 0, NULL);
    i2s_set_adc_mode(ADC_UNIT_1, ADC_CH);
    i2s_adc_enable(I2S_NUM_0);

    dspPauseRequest = false;
    dspTaskRunning = true;
    while(dspIsPaused) { delay(1); }
}

void stopMeasurement() {
    if (!dspTaskRunning) return;
    dspPauseRequest = true;
    int timeout = 0;
    while (!dspIsPaused && timeout < 500) { delay(1); timeout++; }

    i2s_adc_disable(I2S_NUM_0);
    i2s_driver_uninstall(I2S_NUM_0);
    ledcDetachPin(PWM_PIN);
    pinMode(PWM_PIN, OUTPUT);
    digitalWrite(PWM_PIN, LOW);
    dspTaskRunning = false;
}

// =====================================
// Core 0：同期検波・データ集計タスク
// =====================================
void DSP_Task(void *pvParameters) {
    size_t bytes_read;
    uint32_t step_counter = 0;

    while (1) {
        if (dspPauseRequest) {
            dspIsPaused = true;
            vTaskDelay(pdMS_TO_TICKS(10));
            continue;
        }
        dspIsPaused = false;

        esp_err_t res = i2s_read(I2S_NUM_0, &rx_buffer, sizeof(rx_buffer), &bytes_read, portMAX_DELAY);
        if (res != ESP_OK) { vTaskDelay(pdMS_TO_TICKS(1)); continue; }

        int32_t local_acc_raw = 0, local_acc_sine = 0, local_acc_cosine = 0;
        uint32_t samples = bytes_read / 2;
        if (samples == 0) continue;

        for (uint32_t i = 0; i < samples; i++) {
            int32_t raw_val = rx_buffer[i] & 0x0FFF;
            uint8_t current_step = step_counter & 15;
            local_acc_raw    += raw_val;
            local_acc_sine   += raw_val * ref_sine[current_step];
            local_acc_cosine += raw_val * ref_cosine[current_step];
            step_counter++;
        }

        float dc_offset = (float)local_acc_raw / (float)samples;
        float ref_sum_s = 0, ref_sum_c = 0;
        for(int i = 0; i < 16; i++) { ref_sum_s += ref_sine[i]; ref_sum_c += ref_cosine[i]; }
        float corr_sine   = (float)local_acc_sine   - (dc_offset * ref_sum_s * ((float)samples / 16.0f));
        float corr_cosine = (float)local_acc_cosine - (dc_offset * ref_sum_c * ((float)samples / 16.0f));
        float amp_s = corr_sine / (float)samples;
        float amp_c = corr_cosine / (float)samples;

        float amplitude = sqrtf(amp_s * amp_s + amp_c * amp_c) / 102.4f;

        portENTER_CRITICAL(&dataMux);
        shared_amplitude = amplitude;
        portEXIT_CRITICAL(&dataMux);
    }
}

// =====================================
// Core 1：メイン初期化 setup
// =====================================
void setup(){
    setCpuFrequencyMhz(240);
    Serial.begin(115200);
    delay(1000);

    pinMode(HEATER_PIN, OUTPUT);
    digitalWrite(HEATER_PIN, LOW);

    loadAll();
    sensors.begin();
    sensors.setWaitForConversion(false);

    // MQTT巨大バッファ設定
    client.setBufferSize(51200);
    client.setServer(mqtt_server, 1883);
    client.setCallback(callback);

    bootTime = millis();

    dspPauseRequest = true;
    dspIsPaused = true;
    xTaskCreatePinnedToCore(DSP_Task, "DSP_Task", 4096, NULL, 5, &dspTaskHandle, 0);

    // 計測モードから開始
    currentMode = MODE_MEASURE;
    modeStartTime = millis();
    historyCount = 0;
    startMeasurement();
    disconnectWiFi();

    Serial.println("ESP32 TIME-SLIT + BUFFERING SENSOR START (DIRECT TO NODE-RED)");
}

// =====================================
// Core 1 loop
// =====================================
void loop(){
    unsigned long currentMillis = millis();

    // モード切替管理
    if (currentMode == MODE_MEASURE) {
        if (currentMillis - modeStartTime >= MEASURE_PERIOD) {
            Serial.println(">>> Switch to WIFI MODE (Sending accumulated data...)");
            stopMeasurement();
            currentMode = MODE_WIFI;
            modeStartTime = currentMillis;
            mqttSentInThisPeriod = false;
        }
    } else {
        if (currentMillis - modeStartTime >= WIFI_PERIOD) {
            Serial.println(">>> Switch to MEASURE MODE");
            disconnectWiFi();
            historyCount = 0;
            startMeasurement();
            currentMode = MODE_MEASURE;
            modeStartTime = currentMillis;
        }
    }

        // 各モードの処理
    if (currentMode == MODE_MEASURE) {
        portENTER_CRITICAL(&dataMux);
        raw = shared_amplitude;
        portEXIT_CRITICAL(&dataMux);

        // 温度測定 (5秒周期：この周期でグローバル変数 temperature を更新しておく)
        static uint32_t tempTimer = 0;
        if(currentMillis - tempTimer > 5000){
            sensors.requestTemperatures();
            temperature = sensors.getTempCByIndex(0);
            tempTimer = currentMillis;
        }

        // 信号処理判定 (20ms周期)
        static uint32_t signalTimer = 0;
        if(currentMillis - signalTimer > 20){
            diff = processSignal(raw);
            if(!systemReady){
                if(currentMillis - bootTime > WARMUP_TIME){
                    systemReady = true;
                }
            }
            if(systemReady){
                autoLogic(diff);
                rain_mmph = calcRain(diff);
            }else{
                raining = false; autoHeater = false; rain_mmph = 0;
            }

            // 20msデータを配列に蓄積
            if (historyCount < MAX_HISTORY) {
                history[historyCount].diff = diff;
                history[historyCount].temp = temperature;
                historyCount++;
            }
            signalTimer = currentMillis;
        }
        heaterControl();

    } else {
        // 【WiFi通信モード中の処理】
        if(!client.connected()) {
            reconnect();
        }
        client.loop();

                // 配列データをCSV文字列にして一括パブリッシュ
        if (!mqttSentInThisPeriod && client.connected()) {
            char* payloadBuffer = (char*)malloc(51200);

            if (payloadBuffer != NULL) {
                int pos = snprintf(payloadBuffer, 51200,
                    "{\"baseline\":%.3f,\"rainth\":%.2f,\"heaterth\":%.2f,"
                    "\"rain\":%d,\"mmph\":%.3f,\"temp\":%.2f,\"heater\":%d,\"autoheater\":%lu,\"ready\":%d,\"data\":\""
                    , baseline, rainth, heaterth, raining, rain_mmph, temperature, heaterPower, remain_min, systemReady);

                // CSV文字列組み立て (diff,temp|diff,temp|... の順)
                for(int i = 0; i < historyCount; i++) {
                    int written = snprintf(payloadBuffer + pos, 51200 - pos, "%.1f,%.1f|", history[i].diff, history[i].temp);
                    pos += written;
                    if (pos > 51000) break;
                }

                snprintf(payloadBuffer + pos, 51200 - pos, "\"}");

                if(client.publish(pubTopic, payloadBuffer)) {
                    Serial.printf("MQTT Publish OK! Points: %d\n", historyCount);
                    mqttSentInThisPeriod = true;
                } else {
                    Serial.println("MQTT Publish FAILED");
                }
                free(payloadBuffer);
            }
        }


        heaterControl();
    }
    delay(1);
}

#include <Arduino.h>
#include <WiFi.h>
#include <PubSubClient.h>
#include <Preferences.h>
#include <OneWire.h>
#include <DallasTemperature.h>
#include <driver/i2s.h>
#include <math.h>

// =====================================
// 時分割（タイムスライス）設定
// =====================================
#define MEASURE_PERIOD  55000UL  // 計測モードの時間 (ミリ秒) -> 55秒
#define WIFI_PERIOD     6000UL   // WiFi通信モードの時間 (ミリ秒) -> 6秒

// 20msごとのデータを55秒分蓄積するためのバッファサイズ
#define MAX_HISTORY 2000

struct DataPoint {
    float diff;
    float temp;
};

DataPoint history[MAX_HISTORY];
int historyCount = 0;

// 状態管理用
enum SystemMode { MODE_MEASURE, MODE_WIFI };
SystemMode currentMode = MODE_MEASURE;
unsigned long modeStartTime = 0;
bool mqttSentInThisPeriod = false;

// =====================================
// 周波数・同期検波設定
// =====================================
#define TARGET_FREQ     10000   // 10kHz完全同調
#define SAMPLE_RATE     (TARGET_FREQ * 16)
#define BLOCK_SIZE      1024

#define ADC_CH          ADC1_CHANNEL_4 // GPIO32 (入力)
#define PWM_PIN         25             // GPIO25 (LEDC波形出力)

// 参照波（16ステップ周期）
const int32_t ref_sine[] = {
   0,  49,  90, 117, 127, 117,  90,  49,
   0, -49, -90,-117,-127,-117, -90, -49
};
const int32_t ref_cosine[] = {
 127, 117,  90,  49,   0, -49, -90,-117,
-127,-117, -90, -49,   0,  49,  90, 117
};

// =====================================
// WiFi / MQTT 設定
// =====================================
const char* ssid = "your_ssid";
const char* password = "your_passwd";
const char* mqtt_server = "192.168.1.200";//Set Your MQTT Server Address

WiFiClient espClient;
PubSubClient client(espClient);

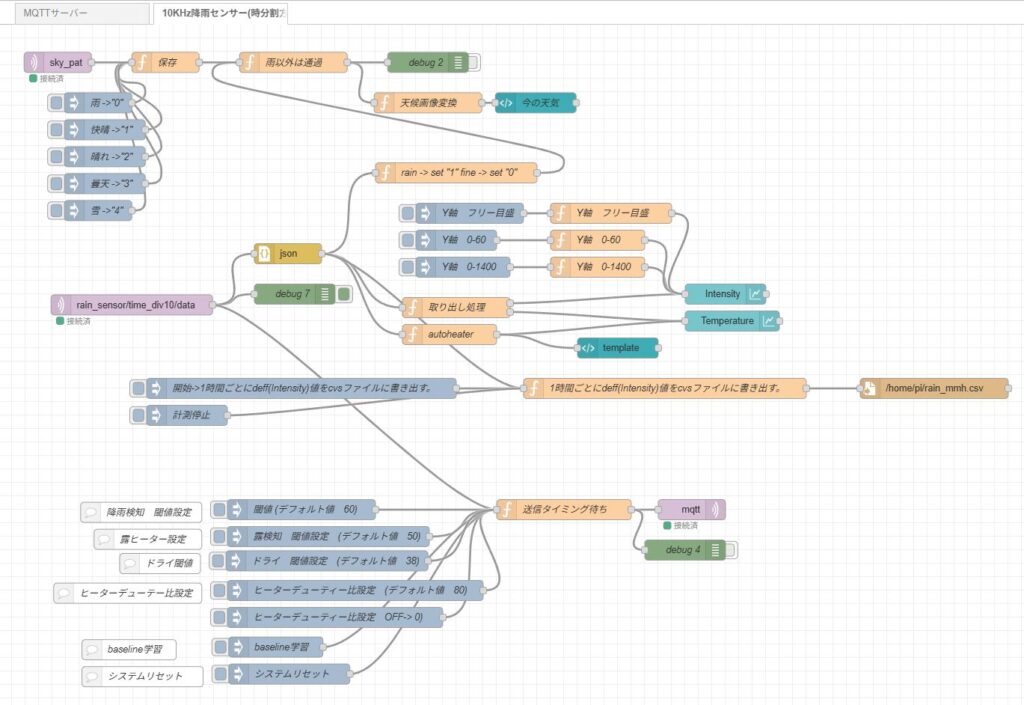

const char* pubTopic = "rain_sensor/time_div10/data";
const char* topicLearn = "rain_sensor/time_div10/learning";
const char* topicRainth = "rain_sensor/time_div10/rainth";
const char* topicHeater = "rain_sensor/time_div10/heater";
const char* topicHeaterth = "rain_sensor/time_div10/heaterth";
const char* topicDryth = "rain_sensor/time_div10/dryth";
const char* topicReset = "rain_sensor/time_div10/reset";

// =====================================

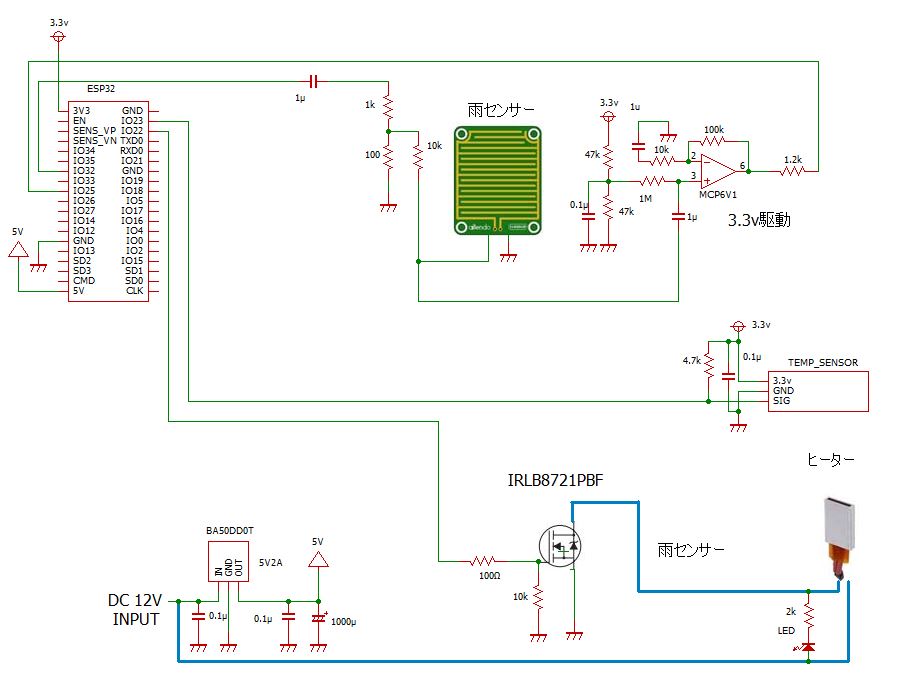

// PIN設定
// =====================================
#define TEMP_PIN     23   // DS18B20 温度計用

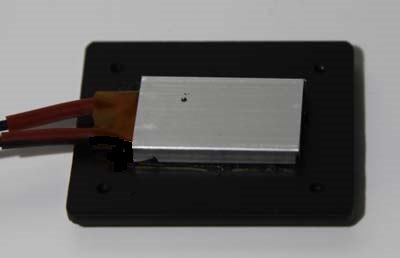

#define HEATER_PIN   22   // ヒーター制御用

// =====================================
// オブジェクト・データ共有変数
// =====================================
OneWire oneWire(TEMP_PIN);
DallasTemperature sensors(&oneWire);
Preferences prefs;
portMUX_TYPE dataMux = portMUX_INITIALIZER_UNLOCKED;

uint16_t rx_buffer[BLOCK_SIZE];
volatile float shared_amplitude = 0.0;

float raw = 0;
float diff = 0;
float filtered = 0;
float baseline = 1350;
float noise_floor = 0;
float rain_mmph = 0;
float temperature = 0;
float rainth = 60;
float heaterth = 50;

int heaterPower = 0;
bool raining = false;
bool learning = false;
bool autoHeater = false;
unsigned long heaterOffStart = 0;
float dryth = 38;
unsigned long elapsed = 0;
unsigned long remain_min = 0;

// =====================================
// 起動安定化時間
// =====================================
#define WARMUP_TIME 900000UL // 15分
unsigned long bootTime = 0;
bool systemReady = false;

// タスク制御用フラグ
TaskHandle_t dspTaskHandle = NULL;
volatile bool dspTaskRunning = false;
volatile bool dspPauseRequest = false;
volatile bool dspIsPaused = false;

void saveBaseline() {
    prefs.begin("rain_gauge", false);
    prefs.putFloat("baseline", baseline);
    prefs.end();
}

void loadAll() {
    prefs.begin("rain_gauge", true);
    rainth = prefs.getFloat("rainth", 60.0);
    heaterth = prefs.getFloat("heaterth", 50.0);
    heaterPower = prefs.getInt("hpower", 0);
    baseline = prefs.getFloat("baseline", 1350.0);
    dryth = prefs.getFloat("dryth", 38.0);
    prefs.end();

    if (isnan(rainth)) rainth = 60;
    if (isnan(heaterth)) heaterth = 50;
    if (isnan(dryth)) dryth = 38;
    if (isnan(baseline) || baseline < 100 || baseline > 4000) {
        baseline = 1350;
    }
    if (heaterPower < 0 || heaterPower > 100) heaterPower = 0;
}

// =====================================
// 信号処理・雨判定ロジック群
// =====================================
float processSignal(float v){
    filtered = filtered * 0.95f + v * 0.05f;
    if(learning){
        baseline = filtered;
        saveBaseline();
        learning = false;
    }
    float d = fabs(filtered - baseline);
    noise_floor = noise_floor * 0.995f + d * 0.005f;
    return d;
}

bool detectRain(float d){
    if(d > rainth) return true;
    if(d < (rainth * 0.4f)) return false;
    return raining;
}

float calcRain(float d){
    if(!raining) return 0;
    float x = d - noise_floor;
    if(x < 0) x = 0;
    float y = 0.015f * powf(x, 1.15f);
    if(y < 0.03f) y = 0;
    return y;
}

void heaterControl(){
    int duty = autoHeater ? heaterPower : 0;
    const uint32_t period = 4000;
    uint32_t onTime = (period * duty) / 100;
    uint32_t t = millis() % period;
    digitalWrite(HEATER_PIN, (t < onTime));
}


void autoLogic(float d){
    raining = detectRain(d);
    if(d > heaterth){
        autoHeater = true;
        heaterOffStart = 0;
        remain_min = 15; // 判定ラインを超えている間は常に「残り15分」を維持
    }

    if(autoHeater && d <= dryth){
        if(!heaterOffStart){
            heaterOffStart = millis();
            remain_min = 15;
        }
        else {
            elapsed = millis() - heaterOffStart;

            if (elapsed < 900000UL) {
                remain_min = (900000UL - elapsed) / 60000UL + 1;
                if (remain_min > 15) remain_min = 15; // 上限ガード
            } else {
                remain_min = 0;
            }

            if(elapsed > 900000UL){
                autoHeater = false;
                heaterOffStart = 0;
                remain_min = 0; // タイマー満了時は0分
            }
        }
    }

    // ヒーター自体が動いていない場合は確実に0にする
    if(!autoHeater) {
        remain_min = 0;
    }
}


// =====================================
// WiFi & MQTT 接続・切断処理
// =====================================
void setupWiFi(){
    WiFi.config(IPAddress(192,168,1,100), IPAddress(192,168,1,1), IPAddress(255,255,255,0));//Set Your IP Address
    WiFi.begin(ssid, password);
    int timeout = 0;
    while(WiFi.status() != WL_CONNECTED && timeout < 12){
        delay(500);
        timeout++;
    }
}

void disconnectWiFi() {
    if (client.connected()) {
        client.disconnect();
    }
    WiFi.disconnect(true);
    WiFi.mode(WIFI_OFF);
}

void reconnect(){
    if (WiFi.status() != WL_CONNECTED) {
        setupWiFi();
    }
    int timeout = 0;
    while(!client.connected() && timeout < 3){
        if(client.connect("time_div10_rain_sensor")){
            client.subscribe(topicLearn);
            client.subscribe(topicRainth);
            client.subscribe(topicHeater);
            client.subscribe(topicHeaterth);
            client.subscribe(topicDryth);
            client.subscribe(topicReset);
        } else {
            delay(500);
            timeout++;
        }
    }
}

void callback(char* topic, byte* payload, unsigned int length){
    String msg;
    for(uint32_t i = 0; i < length; i++){ msg += (char)payload[i]; }
    prefs.begin("rain_gauge", false);
    if(!strcmp(topic, topicLearn)){ if(msg == "1") learning = true; }
    else if(!strcmp(topic, topicRainth)){ int v = msg.toInt(); if(v >= 0 && v <= 100){ rainth = v; prefs.putFloat("rainth", rainth); }}
    else if(!strcmp(topic, topicHeater)){ int v = msg.toInt(); if(v >= 0 && v <= 100){ heaterPower = v; prefs.putInt("hpower", heaterPower); }}
    else if(!strcmp(topic, topicHeaterth)){ int v = msg.toInt(); if(v >= 0 && v <= 100){ heaterth = v; prefs.putFloat("heaterth", heaterth); }}
    else if(!strcmp(topic, topicDryth)){ int v = msg.toInt(); if(v >= 0 && v <= 50){ dryth = v; prefs.putFloat("dryth", dryth); }}
    else if(!strcmp(topic, topicReset)){ prefs.end(); ESP.restart(); }
    prefs.end();
}

// =====================================
// PWM / I2S ハードウェア制御 (開始・停止)
// =====================================
void startMeasurement() {
    if (dspTaskRunning) return;
    ledcSetup(0, TARGET_FREQ, 8);
    ledcAttachPin(PWM_PIN, 0);
    ledcWrite(0, 128);
    adc1_config_channel_atten(ADC_CH, ADC_ATTEN_DB_11);

    i2s_config_t i2s_config = {
        .mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX | I2S_MODE_ADC_BUILT_IN),
        .sample_rate = SAMPLE_RATE,
        .bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,
        .channel_format = I2S_CHANNEL_FMT_ONLY_RIGHT,
        .communication_format = I2S_COMM_FORMAT_STAND_I2S,
        .intr_alloc_flags = ESP_INTR_FLAG_LEVEL1,
        .dma_buf_count = 4,
        .dma_buf_len = BLOCK_SIZE,
        .use_apll = false,
        .tx_desc_auto_clear = false,
        .fixed_mclk = 0
    };
    i2s_driver_install(I2S_NUM_0, &i2s_config, 0, NULL);
    i2s_set_adc_mode(ADC_UNIT_1, ADC_CH);
    i2s_adc_enable(I2S_NUM_0);

    dspPauseRequest = false;
    dspTaskRunning = true;
    while(dspIsPaused) { delay(1); }
}

void stopMeasurement() {
    if (!dspTaskRunning) return;
    dspPauseRequest = true;
    int timeout = 0;
    while (!dspIsPaused && timeout < 500) { delay(1); timeout++; }

    i2s_adc_disable(I2S_NUM_0);
    i2s_driver_uninstall(I2S_NUM_0);
    ledcDetachPin(PWM_PIN);
    pinMode(PWM_PIN, OUTPUT);
    digitalWrite(PWM_PIN, LOW);
    dspTaskRunning = false;
}

// =====================================
// Core 0：同期検波・データ集計タスク
// =====================================
void DSP_Task(void *pvParameters) {
    size_t bytes_read;
    uint32_t step_counter = 0;

    while (1) {
        if (dspPauseRequest) {
            dspIsPaused = true;
            vTaskDelay(pdMS_TO_TICKS(10));
            continue;
        }
        dspIsPaused = false;

        esp_err_t res = i2s_read(I2S_NUM_0, &rx_buffer, sizeof(rx_buffer), &bytes_read, portMAX_DELAY);
        if (res != ESP_OK) { vTaskDelay(pdMS_TO_TICKS(1)); continue; }

        int32_t local_acc_raw = 0, local_acc_sine = 0, local_acc_cosine = 0;
        uint32_t samples = bytes_read / 2;
        if (samples == 0) continue;

        for (uint32_t i = 0; i < samples; i++) {
            int32_t raw_val = rx_buffer[i] & 0x0FFF;
            uint8_t current_step = step_counter & 15;
            local_acc_raw    += raw_val;
            local_acc_sine   += raw_val * ref_sine[current_step];
            local_acc_cosine += raw_val * ref_cosine[current_step];
            step_counter++;
        }

        float dc_offset = (float)local_acc_raw / (float)samples;
        float ref_sum_s = 0, ref_sum_c = 0;
        for(int i = 0; i < 16; i++) { ref_sum_s += ref_sine[i]; ref_sum_c += ref_cosine[i]; }
        float corr_sine   = (float)local_acc_sine   - (dc_offset * ref_sum_s * ((float)samples / 16.0f));
        float corr_cosine = (float)local_acc_cosine - (dc_offset * ref_sum_c * ((float)samples / 16.0f));
        float amp_s = corr_sine / (float)samples;
        float amp_c = corr_cosine / (float)samples;

        float amplitude = sqrtf(amp_s * amp_s + amp_c * amp_c) / 102.4f;

        portENTER_CRITICAL(&dataMux);
        shared_amplitude = amplitude;
        portEXIT_CRITICAL(&dataMux);
    }
}

// =====================================
// Core 1：メイン初期化 setup
// =====================================
void setup(){
    setCpuFrequencyMhz(240);
    Serial.begin(115200);
    delay(1000);

    pinMode(HEATER_PIN, OUTPUT);
    digitalWrite(HEATER_PIN, LOW);

    loadAll();
    sensors.begin();
    sensors.setWaitForConversion(false);

    // MQTT巨大バッファ設定
    client.setBufferSize(51200);
    client.setServer(mqtt_server, 1883);
    client.setCallback(callback);

    bootTime = millis();

    dspPauseRequest = true;
    dspIsPaused = true;
    xTaskCreatePinnedToCore(DSP_Task, "DSP_Task", 4096, NULL, 5, &dspTaskHandle, 0);

    // 計測モードから開始
    currentMode = MODE_MEASURE;
    modeStartTime = millis();
    historyCount = 0;
    startMeasurement();
    disconnectWiFi();

    Serial.println("ESP32 TIME-SLIT + BUFFERING SENSOR START (DIRECT TO NODE-RED)");
}

// =====================================
// Core 1 loop
// =====================================
void loop(){
    unsigned long currentMillis = millis();

    // モード切替管理
    if (currentMode == MODE_MEASURE) {
        if (currentMillis - modeStartTime >= MEASURE_PERIOD) {
            Serial.println(">>> Switch to WIFI MODE (Sending accumulated data...)");
            stopMeasurement();
            currentMode = MODE_WIFI;
            modeStartTime = currentMillis;
            mqttSentInThisPeriod = false;
        }
    } else {
        if (currentMillis - modeStartTime >= WIFI_PERIOD) {
            Serial.println(">>> Switch to MEASURE MODE");
            disconnectWiFi();
            historyCount = 0;
            startMeasurement();
            currentMode = MODE_MEASURE;
            modeStartTime = currentMillis;
        }
    }

        // 各モードの処理
    if (currentMode == MODE_MEASURE) {
        portENTER_CRITICAL(&dataMux);
        raw = shared_amplitude;
        portEXIT_CRITICAL(&dataMux);

        // 温度測定 (5秒周期：この周期でグローバル変数 temperature を更新しておく)
        static uint32_t tempTimer = 0;
        if(currentMillis - tempTimer > 5000){
            sensors.requestTemperatures();
            temperature = sensors.getTempCByIndex(0);
            tempTimer = currentMillis;
        }

        // 信号処理判定 (20ms周期)
        static uint32_t signalTimer = 0;
        if(currentMillis - signalTimer > 20){
            diff = processSignal(raw);
            if(!systemReady){
                if(currentMillis - bootTime > WARMUP_TIME){
                    systemReady = true;
                }
            }
            if(systemReady){
                autoLogic(diff);
                rain_mmph = calcRain(diff);
            }else{
                raining = false; autoHeater = false; rain_mmph = 0;
            }

            // 20msデータを配列に蓄積
            if (historyCount < MAX_HISTORY) {
                history[historyCount].diff = diff;
                history[historyCount].temp = temperature;
                historyCount++;
            }
            signalTimer = currentMillis;
        }
        heaterControl();

    } else {
        // 【WiFi通信モード中の処理】
        if(!client.connected()) {
            reconnect();
        }
        client.loop();

                // 配列データをCSV文字列にして一括パブリッシュ
        if (!mqttSentInThisPeriod && client.connected()) {
            char* payloadBuffer = (char*)malloc(51200);

            if (payloadBuffer != NULL) {
                int pos = snprintf(payloadBuffer, 51200,
                    "{\"baseline\":%.3f,\"rainth\":%.2f,\"heaterth\":%.2f,"
                    "\"rain\":%d,\"mmph\":%.3f,\"temp\":%.2f,\"heater\":%d,\"autoheater\":%lu,\"ready\":%d,\"data\":\""
                    , baseline, rainth, heaterth, raining, rain_mmph, temperature, heaterPower, remain_min, systemReady);

                // CSV文字列組み立て (diff,temp|diff,temp|... の順)
                for(int i = 0; i < historyCount; i++) {
                    int written = snprintf(payloadBuffer + pos, 51200 - pos, "%.1f,%.1f|", history[i].diff, history[i].temp);
                    pos += written;
                    if (pos > 51000) break;
                }

                snprintf(payloadBuffer + pos, 51200 - pos, "\"}");

                if(client.publish(pubTopic, payloadBuffer)) {
                    Serial.printf("MQTT Publish OK! Points: %d\n", historyCount);
                    mqttSentInThisPeriod = true;
                } else {
                    Serial.println("MQTT Publish FAILED");
                }
                free(payloadBuffer);
            }
        }


        heaterControl();
    }
    delay(1);
}

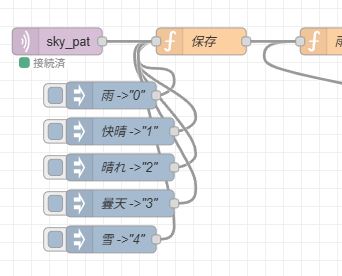

[{"id":"d82e95bcac67f954","type":"tab","label":"10KHz降雨センサー(時分割方式)","disabled":false,"info":"","env":[]},{"id":"be65d249e7fb9a60","type":"inject","z":"d82e95bcac67f954","name":"雨 ->\"0\"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"0","payloadType":"str","x":148.00006484985352,"y":116.00004005432129,"wires":[["72c3c54776cb98df"]]},{"id":"d3c159072423fac6","type":"inject","z":"d82e95bcac67f954","name":"快晴 ->\"1\"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"1","payloadType":"str","x":158.00006484985352,"y":156.0000400543213,"wires":[["72c3c54776cb98df"]]},{"id":"3b9c747f2a27f187","type":"inject","z":"d82e95bcac67f954","name":"晴れ ->\"2\"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"2","payloadType":"str","x":158.00006484985352,"y":196.0000400543213,"wires":[["72c3c54776cb98df"]]},{"id":"ec917c8c9e0671f6","type":"inject","z":"d82e95bcac67f954","name":"曇天 ->\"3\"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"3","payloadType":"str","x":158.00006484985352,"y":236.0000400543213,"wires":[["72c3c54776cb98df"]]},{"id":"b2b76a7d10fcef2c","type":"inject","z":"d82e95bcac67f954","name":"雪 ->\"4\"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"4","payloadType":"str","x":148.00006484985352,"y":276.0000400543213,"wires":[["72c3c54776cb98df"]]},{"id":"b4bcd20a1aabbe5b","type":"function","z":"d82e95bcac67f954","name":"天候画像変換","func":"var icon;\nvar weather = msg.payload;\nswitch(weather){\n    case \"0\":\n        icon = \"/Weather/rain.png\";\n        break;\n    case \"1\":\n        icon = \"/Weather/sunny.png\";\n        break; \n    case \"2\":\n        icon = \"/Weather/sunny_cloudy.png\";\n        break; \n    case \"3\":\n        icon = \"/Weather/cloudy.png\";\n        break;\n    case \"4\":\n        icon = \"/Weather/snow.png\";\n        break;\n}\nmsg.payload = icon;\nreturn msg","outputs":1,"timeout":"","noerr":0,"initialize":"","finalize":"","libs":[],"x":638.0000648498535,"y":116.00004005432129,"wires":[["f9a80ab5a163104d"]]},{"id":"9c778d6067d8ccfa","type":"mqtt in","z":"d82e95bcac67f954","name":"","topic":"rain_sensor/time_div10/data","qos":"2","datatype":"auto-detect","broker":"cf1776747da46a7c","nl":false,"rap":true,"rh":0,"inputs":0,"x":198.00006484985352,"y":416.0000400543213,"wires":[["8b5be9a08575afc9","json_db1","347b545b24a538ab"]]},{"id":"8b5be9a08575afc9","type":"debug","z":"d82e95bcac67f954","name":"debug 7","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":440,"y":400,"wires":[]},{"id":"0d6a7ef2fcadc3c7","type":"inject","z":"d82e95bcac67f954","name":"閾値 (デフォルト値　60)","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"rainth","payload":"60","payloadType":"str","x":450,"y":720,"wires":[["347b545b24a538ab"]]},{"id":"95789ffaf9ddd403","type":"mqtt out","z":"d82e95bcac67f954","name":"","topic":"","qos":"","retain":"","respTopic":"","contentType":"","userProps":"","correl":"","expiry":"","broker":"cf1776747da46a7c","x":1030,"y":720,"wires":[]},{"id":"b39f0bf23c910e1d","type":"comment","z":"d82e95bcac67f954","name":"降雨検知　閾値設定","info":"","x":211.99993515014648,"y":723.9999599456787,"wires":[]},{"id":"a3aa65bd4adfd2d6","type":"mqtt in","z":"d82e95bcac67f954","name":"","topic":"sky_pat","qos":"2","datatype":"auto-detect","broker":"9ded4b95213fa421","nl":false,"rap":true,"rh":0,"inputs":0,"x":88.00006484985352,"y":56.00004005432129,"wires":[["72c3c54776cb98df"]]},{"id":"be88932e09ba2474","type":"function","z":"d82e95bcac67f954","name":"雨以外は通過","func":"var temp = \"\";\nvar sun_pat = global.get(\"sun_pat\");\nvar status = global.get(\"rain_status\");\nif (status == \"0\") temp = sun_pat;\nelse if (status == \"1\") temp = \"0\";\nmsg.payload = temp;\nreturn msg;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":438.0000648498535,"y":56.00004005432129,"wires":[["b4bcd20a1aabbe5b","e134bb12bf6bf9f7"]]},{"id":"e134bb12bf6bf9f7","type":"debug","z":"d82e95bcac67f954","name":"debug 2","active":false,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":638.0000648498535,"y":56.00004005432129,"wires":[]},{"id":"264e78e6f0567bb7","type":"inject","z":"d82e95bcac67f954","name":"露検知　閾値設定　(デフォルト値　50)","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"heaterth","payload":"50","payloadType":"str","x":490,"y":760,"wires":[["347b545b24a538ab"]]},{"id":"9147d307a333b05c","type":"comment","z":"d82e95bcac67f954","name":"露ヒーター設定","info":"","x":221.99993515014648,"y":763.9999599456787,"wires":[]},{"id":"10f420fc391be345","type":"inject","z":"d82e95bcac67f954","name":"ヒーターデューティー比設定　(デフォルト値　80)","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"heater","payload":"80","payloadType":"str","x":530,"y":840,"wires":[["347b545b24a538ab"]]},{"id":"43f2cdd41b378dd0","type":"comment","z":"d82e95bcac67f954","name":"ヒーターデューテー比設定","info":"","x":191.99993515014648,"y":843.9999599456787,"wires":[]},{"id":"64ae30e16f5923e4","type":"inject","z":"d82e95bcac67f954","name":"ヒーターデューティー比設定　OFF-> 0)","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"heater","payload":"0","payloadType":"str","x":500,"y":880,"wires":[["347b545b24a538ab"]]},{"id":"77db4c61c5d0375d","type":"inject","z":"d82e95bcac67f954","name":"システムリセット","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"reset","payload":"1","payloadType":"str","x":431.9999351501465,"y":963.9999599456787,"wires":[["347b545b24a538ab"]]},{"id":"json_db1","type":"json","z":"d82e95bcac67f954","name":"","property":"payload","action":"obj","pretty":false,"x":430,"y":340,"wires":[["8dccaef0fea62aa8","dd3da730d9cd71f1","9367f40b54ef9343","01810c67cfb94e89"]]},{"id":"8dccaef0fea62aa8","type":"function","z":"d82e95bcac67f954","name":"取り出し処理","func":"const msgData = msg.payload;\nif (!msgData || !msgData.data) return null;\n\n// MQTTを受信した「現在時刻のタイムスタンプ（ミリ秒）」を取得\nconst now = Date.now();\n\n// CSV文字列を「|」で分割して配列化\nconst points = msgData.data.split('|');\n\nconst chartDiffData = [];\nconst chartTempData = [];\n\n// 有効データ数を正確にカウント\nlet validCount = 0;\nfor (let i = 0; i < points.length; i++) {\n    if (points[i].trim() !== \"\") validCount++;\n}\n\nlet currentIndex = 0;\nfor (let i = 0; i < points.length; i++) {\n    const p = points[i].trim();\n    if (p === \"\") continue;\n\n    const values = p.split(',');\n    if (values.length < 2) continue;\n\n    // ESP32側から [0]=diff, [1]=temp で送られてくるので正しく読み分ける\n    const diffVal = parseFloat(values[0]);\n    const tempVal = parseFloat(values[1]);\n\n    // 20msずつ過去に遡って、全く同じ正確なタイムスタンプ（ミリ秒）を共有する\n    const timeOffset = (validCount - 1 - currentIndex) * 20;\n    const exactTimestamp = now - timeOffset;\n\n    // 共通のタイムスタンプでそれぞれの配列に格納\n    chartDiffData.push({ x: exactTimestamp, y: parseFloat(diffVal.toFixed(1)) });\n    chartTempData.push({ x: exactTimestamp, y: parseFloat(tempVal.toFixed(1)) });\n\n    currentIndex++;\n}\n\n// --- フロー変数（メモリ）を使って、Node-RED側で4分間分のデータを合体させる ---\nlet diffHistory = flow.get(\"diffHistory\") || [];\nlet tempHistory = flow.get(\"tempHistory\") || [];\n\n// 新しいデータを合体\ndiffHistory = diffHistory.concat(chartDiffData);\ntempHistory = tempHistory.concat(chartTempData);\n\n// 4分（240秒）より古いデータを自動掃除\nconst fourMinutesAgo = now - 240000;\ndiffHistory = diffHistory.filter(d => d.x >= fourMinutesAgo);\ntempHistory = tempHistory.filter(d => d.x >= fourMinutesAgo);\n\n// 次回のためにメモリに保存\nflow.set(\"diffHistory\", diffHistory);\nflow.set(\"tempHistory\", tempHistory);\n\n// --- 出力メッセージの組み立て ---\nconst msgDiff = { \n    payload: [{\n        series: [\"検波差分 (diff)\"],\n        data: [diffHistory]\n    }]\n};\n\nconst msgTemp = { \n    payload: [{\n        series: [\"環境温度 (temp)\"],\n        data: [tempHistory]\n    }]\n};\n\n// 1番ポートからdiff、2番ポートからtempを出力します\nreturn [msgDiff, msgTemp];\n\n\n\n\n\n\n\n\n\n\n\n","outputs":2,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":680,"y":420,"wires":[["33536a5fece05a92"],["6e52e4e0f7bc9924"]]},{"id":"33536a5fece05a92","type":"ui_chart","z":"d82e95bcac67f954","name":"","group":"69e2427cbeda8fbd","order":3,"width":0,"height":0,"label":"Intensity","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":"1","removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":1080,"y":400,"wires":[[]]},{"id":"dd3da730d9cd71f1","type":"function","z":"d82e95bcac67f954","name":"rain -> set \"1\"   fine -> set \"0\"","func":"var status = msg.payload.rain;\nif (status == 1) global.set(\"rain_status\",\"1\");\nelse if (status == 0) global.set(\"rain_status\", \"0\");\nmsg.payload = \"5\";\nreturn msg;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":680,"y":220,"wires":[["be88932e09ba2474"]]},{"id":"6e52e4e0f7bc9924","type":"ui_chart","z":"d82e95bcac67f954","name":"","group":"69e2427cbeda8fbd","order":5,"width":0,"height":0,"label":"Temperature","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"-5","ymax":"55","removeOlder":"1","removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":1090,"y":440,"wires":[[]]},{"id":"347b545b24a538ab","type":"function","z":"d82e95bcac67f954","name":"送信タイミング待ち","func":"// Node-REDのフローメモリから、送信待ちバッファオブジェクトを取得（なければ新規作成）\nlet queue = flow.get(\"esp32_pending_queue\") || {};\n\n// =============================================\n// パターンA: ユーザーが各種設定ボタンをクリックしたとき\n// =============================================\nif (msg.topic === \"rainth\" || msg.topic === \"heaterth\" || msg.topic === \"heater\" || msg.topic === \"learning\" || msg.topic === \"reset\") {\n    // どのボタンが押されたかに応じて、メモリに値をプールする\n    queue[msg.topic] = msg.payload;\n    flow.set(\"esp32_pending_queue\", queue);\n\n    // 画面上に現在たまっている待機中の設定一覧を表示\n    let txt = \"待機中: \" + JSON.stringify(queue);\n    node.status({ fill: \"blue\", shape: \"dot\", text: txt });\n\n    // まだESP32へは送信しない\n    return null;\n}\n\n// =============================================\n// パターンB: ESP32からデータが届いたとき（WiFi開通の瞬間！）\n// =============================================\nif (msg.topic === \"rain_sensor/time_div10/data\") {\n\n    // 送信待ちの設定が1つでもあるかチェック\n    if (Object.keys(queue).length > 0) {\n\n        // 複数のMQTTメッセージを連続して出力するための配列を用意\n        let outputMessages = [];\n\n        // メモリにたまっている設定を1つずつ取り出してMQTTメッセージを組み立てる\n        for (let key in queue) {\n            if (queue[key] !== null) {\n                outputMessages.push({\n                    topic: \"rain_sensor/time_div10/\" + key, // 例: rain_sensor/sync125/rainth\n                    payload: queue[key].toString()       // 文字列として安全に送信\n                });\n            }\n        }\n\n        // 送信が確定したので、メモリの待機バッファを完全に空にする\n        flow.set(\"esp32_pending_queue\", {});\n        node.status({ fill: \"green\", shape: \"ring\", text: \"全設定を一斉送信完了！\" });\n\n        // 組み立てた複数のメッセージを出力（MQTT outへ同時に一斉射撃されます）\n        return [outputMessages];\n    }\n}\n\nreturn null;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":840,"y":720,"wires":[["95789ffaf9ddd403","4e976c9d572a927e"]]},{"id":"4e976c9d572a927e","type":"debug","z":"d82e95bcac67f954","name":"debug 4","active":false,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":1020,"y":780,"wires":[]},{"id":"f9a80ab5a163104d","type":"ui_template","z":"d82e95bcac67f954","group":"69e2427cbeda8fbd","name":"今の天気","order":1,"width":14,"height":2,"format":"<p> </p>\n<p><img style=\"display: block; margin-top: auto; margin-bottom: auto; margin-left: auto; margin-right: auto;\" src={{msg.payload}} width=\"85\" height=\"85\"/>\n</p>","storeOutMessages":true,"fwdInMessages":true,"resendOnRefresh":true,"templateScope":"local","className":"","x":798.0000648498535,"y":116.00004005432129,"wires":[[]]},{"id":"057c6df505c7a0d5","type":"comment","z":"d82e95bcac67f954","name":"システムリセット","info":"","x":213.99987030029297,"y":967.9999198913574,"wires":[]},{"id":"72c3c54776cb98df","type":"function","z":"d82e95bcac67f954","name":"保存","func":"var sun = String(msg.payload);\nglobal.set(\"sun_pat\",sun);\nreturn msg;","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":248.00006484985352,"y":56.00004005432129,"wires":[["be88932e09ba2474"]]},{"id":"5ce867248f6d97f5","type":"function","z":"d82e95bcac67f954","name":"Y軸　0-1400","func":"// 1. 0-1400目盛りに設定\nmsg.ui_control = {\n    ymax: 1400,\n    ymin: 0\n};\n\n// 2. ラズパイのメモリ(flow)から、現在貯まっているdiffの履歴を引っ張ってくる\n// ※前回のFunctionノードで保存している変数名に合わせています\nconst diffHistory = flow.get(\"diffHistory\") || [];\n\n// 3. 目盛り変更と同時に、現在のデータをチャートに再認識させて一瞬でグラフを再描画する\nmsg.payload = [{\n    series: [\"検波差分 (diff)\"],\n    data: [diffHistory]\n}];\n\nreturn msg;\n\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":890,"y":360,"wires":[["33536a5fece05a92"]]},{"id":"08a73af22c18cd7d","type":"function","z":"d82e95bcac67f954","name":"Y軸　0-60","func":"// 1. 0-60目盛りに設定\nmsg.ui_control = {\n    ymax: 60,\n    ymin: 0\n};\n\n// 2. ラズパイのメモリ(flow)から、現在貯まっているdiffの履歴を引っ張ってくる\n// ※前回のFunctionノードで保存している変数名に合わせています\nconst diffHistory = flow.get(\"diffHistory\") || [];\n\n// 3. 目盛り変更と同時に、現在のデータをチャートに再認識させて一瞬でグラフを再描画する\nmsg.payload = [{\n    series: [\"検波差分 (diff)\"],\n    data: [diffHistory]\n}];\n\nreturn msg;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":890,"y":320,"wires":[["33536a5fece05a92"]]},{"id":"6ef6bc479452e016","type":"inject","z":"d82e95bcac67f954","name":"Y軸　0-60","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":680,"y":320,"wires":[["08a73af22c18cd7d"]]},{"id":"af77f662e492ed66","type":"inject","z":"d82e95bcac67f954","name":"Y軸　0-1400","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":690,"y":360,"wires":[["5ce867248f6d97f5"]]},{"id":"2a39b0497673b0b1","type":"inject","z":"d82e95bcac67f954","name":"Y軸　フリー目盛","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":700,"y":280,"wires":[["9d0a01b8586368bb"]]},{"id":"9d0a01b8586368bb","type":"function","z":"d82e95bcac67f954","name":"Y軸　フリー目盛","func":"// 1. フリー目盛りに戻す設定\nmsg.ui_control = {\n    ymax: \"\",\n    ymin: \"\"\n};\n\n// 2. ラズパイのメモリ(flow)から、現在貯まっているdiffの履歴を引っ張ってくる\n// ※前回のFunctionノードで保存している変数名に合わせています\nconst diffHistory = flow.get(\"diffHistory\") || [];\n\n// 3. 目盛り変更と同時に、現在のデータをチャートに再認識させて一瞬でグラフを再描画する\nmsg.payload = [{\n    series: [\"検波差分 (diff)\"],\n    data: [diffHistory]\n}];\n\nreturn msg;\n\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":910,"y":280,"wires":[["33536a5fece05a92"]]},{"id":"ee9dfd8410e5c828","type":"inject","z":"d82e95bcac67f954","name":"baseline学習","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"learning","payload":"1","payloadType":"str","x":411.9999351501465,"y":923.9999599456787,"wires":[["347b545b24a538ab"]]},{"id":"87155f188fc5c79f","type":"comment","z":"d82e95bcac67f954","name":"baseline学習","info":"","x":193.99987030029297,"y":927.9999198913574,"wires":[]},{"id":"9367f40b54ef9343","type":"function","z":"d82e95bcac67f954","name":"autoheater","func":"var heater = msg.payload.autoheater;\nmsg.payload = heater;\nreturn msg;","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":670,"y":460,"wires":[["6e52e4e0f7bc9924","bf0409dcccb950a9"]]},{"id":"bf0409dcccb950a9","type":"ui_template","z":"d82e95bcac67f954","group":"69e2427cbeda8fbd","name":"","order":3,"width":0,"height":0,"format":"<!-- 1. 表示用のテキスト（HTML） -->\n<div class=\"temp-status-container\">\n    <span class=\"temp-label\" ng-class=\"{'heater-on': msg.payload > 0, 'heater-off': msg.payload == 0}\">\n        Temperature (ヒーター: {{msg.payload > 0 ? msg.payload + '分' : 'OFF'}})\n    </span>\n</div>\n\n<!-- 2. 動的に色を切り替えるためのデザイン（CSS） -->\n<style>\n    /* 文字色のルール設定 */\n    /* OFFのとき：白文字 */\n    .temp-label.heater-off {\n        color: #ffffff !important;\n        font-weight: bold;\n        font-size: 16px;\n    }\n\n    /* ONのとき：白文字（背景が暗いダッシュボード用。もし背景が白い場合は好みの色に変更可） */\n    .temp-label.heater-on {\n        color: #ffffff !important;\n        font-weight: bold;\n        font-size: 16px;\n        background-color: #ff3333;\n        /* ONのときは文字の背景に赤座布団を敷いて目立たせる */\n        padding: 2px 6px;\n        border-radius: 4px;\n    }\n\n    /* 【応用】グラフ全体の背景色をヒーターONの時だけうっすら赤く染める設定 */\n    /* あなたの環境のチャートのクラス名に合わせて自動適用されます */\n    .nr-dashboard-chart {\n        transition: background-color 0.5s ease;\n        /* 色変化を滑らかにする */\n    }\n</style>\n\n<!-- 3. バックグラウンドでグラフの背景色を制御するJavaScript -->\n<script>\n    (function(scope) {\n        scope.$watch('msg', function(msg) {\n            if (!msg) return;\n            \n            // チャートのDOM（画面要素）を全検索\n            const charts = document.querySelectorAll('.nr-dashboard-chart');\n            \n            charts.forEach(function(chart) {\n                // 今回は「環境温度 (temp)」というタイトルのチャートを探す、または全チャートに適用\n                if (msg.payload > 0) {\n                    // ヒーターON（0以外）なら、グラフ背景をうっすら警戒色の赤にする\n                    chart.style.backgroundColor = 'rgba(255, 0, 0, 0.08)'; \n                } else {\n                    // ヒーターOFF（0）なら、透明（通常時）に戻す\n                    chart.style.backgroundColor = 'transparent';\n                }\n            });\n        });\n    })(scope);\n</script>","storeOutMessages":true,"fwdInMessages":true,"resendOnRefresh":true,"templateScope":"local","className":"","x":920,"y":480,"wires":[[]]},{"id":"01810c67cfb94e89","type":"function","z":"d82e95bcac67f954","name":"1時間ごとにdeff(Intensity)値をcvsファイルに書き出す。","func":"// --- 1時間自動集計・CSV保存ロジック（開始・停止ボタン対応版） ---\n\n// メモリ(context)から現在の状態を取得\nlet isRunning = context.get(\"isRunning\") || false;\nlet hourlySum = context.get(\"hourlySum\") || 0.0;\nlet lastLogHour = context.get(\"lastLogHour\") || -1;\n\n// 1. Injectボタンからメッセージが届いた場合の処理\nif (msg.payload === \"start\") {\n    isRunning = true;\n    context.set(\"isRunning\", isRunning);\n    node.status({ fill: \"green\", shape: \"dot\", text: \"集計中: 現在値 \" + hourlySum.toFixed(1) });\n    return null; // ボタンを押した瞬間はCSV出力しないのでここで終了\n}\n\nif (msg.payload === \"stop\") {\n    isRunning = false;\n    context.set(\"isRunning\", isRunning);\n    node.status({ fill: \"red\", shape: \"dot\", text: \"計測停止中\" });\n    return null; // ボタンを押した瞬間は終了\n}\n\n// 2. 状態が「停止中」なら、MQTTからデータが来てもすべて無視する\nif (!isRunning) {\n    node.status({ fill: \"red\", shape: \"dot\", text: \"計測停止中\" });\n    return null;\n}\n\n// 3. MQTTからデータが届いた場合の集計処理\nif (msg.payload && msg.payload.data) {\n    const points = msg.payload.data.split('|');\n\n    // この55秒間の受信データの diff をすべて足し算する\n    for (let i = 0; i < points.length; i++) {\n        const p = points[i].trim();\n        if (p === \"\") continue;\n        const values = p.split(',');\n        if (values.length < 2) continue;\n\n        const diffVal = parseFloat(values[0]); // diff値\n        if (!isNaN(diffVal)) {\n            hourlySum += diffVal;\n        }\n    }\n    context.set(\"hourlySum\", hourlySum);\n\n    // 現在の集計合計値をリアルタイムにノードの下に表示\n    node.status({ fill: \"green\", shape: \"dot\", text: \"集計中: 現在値 \" + hourlySum.toFixed(1) });\n}\n\n// 4. 「毎正時（00分）」になったかどうかのチェック\nconst now = new Date();\nconst currentHour = now.getHours();\nconst currentMinute = now.getMinutes();\n\n// 起動直後の最初の正時判定のための初期化\nif (lastLogHour === -1) {\n    lastLogHour = currentHour;\n    context.set(\"lastLogHour\", lastLogHour);\n}\n\n// 【正時判定】時間が変わり、かつ分が0分になった場合\nif (currentHour !== lastLogHour && currentMinute === 0) {\n\n    // 日本時間のタイムスタンプ文字列を作成 (YYYY-MM-DD HH:00:00)\n    const year = now.getFullYear();\n    const month = String(now.getMonth() + 1).padStart(2, '0');\n    const date = String(now.getDate()).padStart(2, '0');\n    const logHour = String(lastLogHour).padStart(2, '0'); // 集計していた時間帯の「時」\n\n    const timestampStr = `${year}-${month}-${date} ${logHour}:00:00`;\n\n    // CSVの1行を作成 (日時, diffの1時間合計値)\n    const csvLine = `${timestampStr},${hourlySum.toFixed(2)}\\n`;\n\n    // 次の時間のためにカウンターをリセット\n    context.set(\"hourlySum\", 0.0);\n    context.set(\"lastLogHour\", currentHour);\n\n    // 次の「fileノード」にCSV文字列を渡して書き込ませる\n    return { payload: csvLine };\n}\n\nreturn null;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":990,"y":540,"wires":[["f8020b58d341e333"]]},{"id":"f8020b58d341e333","type":"file","z":"d82e95bcac67f954","name":"","filename":"/home/pi/rain_mmh.csv","filenameType":"str","appendNewline":false,"createDir":false,"overwriteFile":"false","encoding":"none","x":1390,"y":540,"wires":[[]]},{"id":"f0907cb9210464df","type":"inject","z":"d82e95bcac67f954","name":"開始->1時間ごとにdeff(Intensity)値をcvsファイルに書き出す。","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"toggle_monitor","payload":"start","payloadType":"str","x":450,"y":540,"wires":[["01810c67cfb94e89"]]},{"id":"9286f9b3a6af67d2","type":"inject","z":"d82e95bcac67f954","name":"計測停止","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"toggle_monitor","payload":"stop","payloadType":"str","x":280,"y":580,"wires":[["01810c67cfb94e89"]]},{"id":"1da5f761ba0a94b8","type":"comment","z":"d82e95bcac67f954","name":"ドライ閾値","info":"","x":240,"y":800,"wires":[]},{"id":"4a88cd5e50a98ad0","type":"inject","z":"d82e95bcac67f954","name":"ドライ　閾値設定　(デフォルト値　38)","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"heaterth","payload":"38","payloadType":"str","x":488.0000648498535,"y":796.0000400543213,"wires":[["347b545b24a538ab"]]},{"id":"cf1776747da46a7c","type":"mqtt-broker","name":"","broker":"192.168.1.100","port":1883,"clientid":"","autoConnect":true,"usetls":false,"protocolVersion":4,"keepalive":60,"cleansession":true,"autoUnsubscribe":true,"birthTopic":"","birthQos":"0","birthRetain":"false","birthPayload":"","birthMsg":{},"closeTopic":"","closeQos":"0","closeRetain":"false","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willRetain":"false","willPayload":"","willMsg":{},"userProps":"","sessionExpiry":""},{"id":"9ded4b95213fa421","type":"mqtt-broker","name":"","broker":"192.168.1.200","port":"1883","clientid":"","autoConnect":true,"usetls":false,"protocolVersion":4,"keepalive":60,"cleansession":true,"autoUnsubscribe":true,"birthTopic":"","birthQos":"0","birthRetain":"false","birthPayload":"","birthMsg":{},"closeTopic":"","closeQos":"0","closeRetain":"false","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willRetain":"false","willPayload":"","willMsg":{},"userProps":"","sessionExpiry":""},{"id":"69e2427cbeda8fbd","type":"ui_group","name":"降雨センサー","tab":"0295dbb1aeae00da","order":1,"disp":true,"width":14,"collapse":false,"className":""},{"id":"0295dbb1aeae00da","type":"ui_tab","name":"天気","icon":"dashboard","disabled":false,"hidden":false},{"id":"32569249dd57a829","type":"global-config","env":[],"modules":{"node-red-dashboard":"3.6.6"}}]

[{"id":"d82e95bcac67f954","type":"tab","label":"10KHz降雨センサー(時分割方式)","disabled":false,"info":"","env":[]},{"id":"be65d249e7fb9a60","type":"inject","z":"d82e95bcac67f954","name":"雨 ->\"0\"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"0","payloadType":"str","x":148.00006484985352,"y":116.00004005432129,"wires":[["72c3c54776cb98df"]]},{"id":"d3c159072423fac6","type":"inject","z":"d82e95bcac67f954","name":"快晴 ->\"1\"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"1","payloadType":"str","x":158.00006484985352,"y":156.0000400543213,"wires":[["72c3c54776cb98df"]]},{"id":"3b9c747f2a27f187","type":"inject","z":"d82e95bcac67f954","name":"晴れ ->\"2\"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"2","payloadType":"str","x":158.00006484985352,"y":196.0000400543213,"wires":[["72c3c54776cb98df"]]},{"id":"ec917c8c9e0671f6","type":"inject","z":"d82e95bcac67f954","name":"曇天 ->\"3\"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"3","payloadType":"str","x":158.00006484985352,"y":236.0000400543213,"wires":[["72c3c54776cb98df"]]},{"id":"b2b76a7d10fcef2c","type":"inject","z":"d82e95bcac67f954","name":"雪 ->\"4\"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"4","payloadType":"str","x":148.00006484985352,"y":276.0000400543213,"wires":[["72c3c54776cb98df"]]},{"id":"b4bcd20a1aabbe5b","type":"function","z":"d82e95bcac67f954","name":"天候画像変換","func":"var icon;\nvar weather = msg.payload;\nswitch(weather){\n    case \"0\":\n        icon = \"/Weather/rain.png\";\n        break;\n    case \"1\":\n        icon = \"/Weather/sunny.png\";\n        break; \n    case \"2\":\n        icon = \"/Weather/sunny_cloudy.png\";\n        break; \n    case \"3\":\n        icon = \"/Weather/cloudy.png\";\n        break;\n    case \"4\":\n        icon = \"/Weather/snow.png\";\n        break;\n}\nmsg.payload = icon;\nreturn msg","outputs":1,"timeout":"","noerr":0,"initialize":"","finalize":"","libs":[],"x":638.0000648498535,"y":116.00004005432129,"wires":[["f9a80ab5a163104d"]]},{"id":"9c778d6067d8ccfa","type":"mqtt in","z":"d82e95bcac67f954","name":"","topic":"rain_sensor/time_div10/data","qos":"2","datatype":"auto-detect","broker":"cf1776747da46a7c","nl":false,"rap":true,"rh":0,"inputs":0,"x":198.00006484985352,"y":416.0000400543213,"wires":[["8b5be9a08575afc9","json_db1","347b545b24a538ab"]]},{"id":"8b5be9a08575afc9","type":"debug","z":"d82e95bcac67f954","name":"debug 7","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":440,"y":400,"wires":[]},{"id":"0d6a7ef2fcadc3c7","type":"inject","z":"d82e95bcac67f954","name":"閾値 (デフォルト値　60)","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"rainth","payload":"60","payloadType":"str","x":450,"y":720,"wires":[["347b545b24a538ab"]]},{"id":"95789ffaf9ddd403","type":"mqtt out","z":"d82e95bcac67f954","name":"","topic":"","qos":"","retain":"","respTopic":"","contentType":"","userProps":"","correl":"","expiry":"","broker":"cf1776747da46a7c","x":1030,"y":720,"wires":[]},{"id":"b39f0bf23c910e1d","type":"comment","z":"d82e95bcac67f954","name":"降雨検知　閾値設定","info":"","x":211.99993515014648,"y":723.9999599456787,"wires":[]},{"id":"a3aa65bd4adfd2d6","type":"mqtt in","z":"d82e95bcac67f954","name":"","topic":"sky_pat","qos":"2","datatype":"auto-detect","broker":"9ded4b95213fa421","nl":false,"rap":true,"rh":0,"inputs":0,"x":88.00006484985352,"y":56.00004005432129,"wires":[["72c3c54776cb98df"]]},{"id":"be88932e09ba2474","type":"function","z":"d82e95bcac67f954","name":"雨以外は通過","func":"var temp = \"\";\nvar sun_pat = global.get(\"sun_pat\");\nvar status = global.get(\"rain_status\");\nif (status == \"0\") temp = sun_pat;\nelse if (status == \"1\") temp = \"0\";\nmsg.payload = temp;\nreturn msg;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":438.0000648498535,"y":56.00004005432129,"wires":[["b4bcd20a1aabbe5b","e134bb12bf6bf9f7"]]},{"id":"e134bb12bf6bf9f7","type":"debug","z":"d82e95bcac67f954","name":"debug 2","active":false,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":638.0000648498535,"y":56.00004005432129,"wires":[]},{"id":"264e78e6f0567bb7","type":"inject","z":"d82e95bcac67f954","name":"露検知　閾値設定　(デフォルト値　50)","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"heaterth","payload":"50","payloadType":"str","x":490,"y":760,"wires":[["347b545b24a538ab"]]},{"id":"9147d307a333b05c","type":"comment","z":"d82e95bcac67f954","name":"露ヒーター設定","info":"","x":221.99993515014648,"y":763.9999599456787,"wires":[]},{"id":"10f420fc391be345","type":"inject","z":"d82e95bcac67f954","name":"ヒーターデューティー比設定　(デフォルト値　80)","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"heater","payload":"80","payloadType":"str","x":530,"y":840,"wires":[["347b545b24a538ab"]]},{"id":"43f2cdd41b378dd0","type":"comment","z":"d82e95bcac67f954","name":"ヒーターデューテー比設定","info":"","x":191.99993515014648,"y":843.9999599456787,"wires":[]},{"id":"64ae30e16f5923e4","type":"inject","z":"d82e95bcac67f954","name":"ヒーターデューティー比設定　OFF-> 0)","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"heater","payload":"0","payloadType":"str","x":500,"y":880,"wires":[["347b545b24a538ab"]]},{"id":"77db4c61c5d0375d","type":"inject","z":"d82e95bcac67f954","name":"システムリセット","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"reset","payload":"1","payloadType":"str","x":431.9999351501465,"y":963.9999599456787,"wires":[["347b545b24a538ab"]]},{"id":"json_db1","type":"json","z":"d82e95bcac67f954","name":"","property":"payload","action":"obj","pretty":false,"x":430,"y":340,"wires":[["8dccaef0fea62aa8","dd3da730d9cd71f1","9367f40b54ef9343","01810c67cfb94e89"]]},{"id":"8dccaef0fea62aa8","type":"function","z":"d82e95bcac67f954","name":"取り出し処理","func":"const msgData = msg.payload;\nif (!msgData || !msgData.data) return null;\n\n// MQTTを受信した「現在時刻のタイムスタンプ（ミリ秒）」を取得\nconst now = Date.now();\n\n// CSV文字列を「|」で分割して配列化\nconst points = msgData.data.split('|');\n\nconst chartDiffData = [];\nconst chartTempData = [];\n\n// 有効データ数を正確にカウント\nlet validCount = 0;\nfor (let i = 0; i < points.length; i++) {\n    if (points[i].trim() !== \"\") validCount++;\n}\n\nlet currentIndex = 0;\nfor (let i = 0; i < points.length; i++) {\n    const p = points[i].trim();\n    if (p === \"\") continue;\n\n    const values = p.split(',');\n    if (values.length < 2) continue;\n\n    // ESP32側から [0]=diff, [1]=temp で送られてくるので正しく読み分ける\n    const diffVal = parseFloat(values[0]);\n    const tempVal = parseFloat(values[1]);\n\n    // 20msずつ過去に遡って、全く同じ正確なタイムスタンプ（ミリ秒）を共有する\n    const timeOffset = (validCount - 1 - currentIndex) * 20;\n    const exactTimestamp = now - timeOffset;\n\n    // 共通のタイムスタンプでそれぞれの配列に格納\n    chartDiffData.push({ x: exactTimestamp, y: parseFloat(diffVal.toFixed(1)) });\n    chartTempData.push({ x: exactTimestamp, y: parseFloat(tempVal.toFixed(1)) });\n\n    currentIndex++;\n}\n\n// --- フロー変数（メモリ）を使って、Node-RED側で4分間分のデータを合体させる ---\nlet diffHistory = flow.get(\"diffHistory\") || [];\nlet tempHistory = flow.get(\"tempHistory\") || [];\n\n// 新しいデータを合体\ndiffHistory = diffHistory.concat(chartDiffData);\ntempHistory = tempHistory.concat(chartTempData);\n\n// 4分（240秒）より古いデータを自動掃除\nconst fourMinutesAgo = now - 240000;\ndiffHistory = diffHistory.filter(d => d.x >= fourMinutesAgo);\ntempHistory = tempHistory.filter(d => d.x >= fourMinutesAgo);\n\n// 次回のためにメモリに保存\nflow.set(\"diffHistory\", diffHistory);\nflow.set(\"tempHistory\", tempHistory);\n\n// --- 出力メッセージの組み立て ---\nconst msgDiff = { \n    payload: [{\n        series: [\"検波差分 (diff)\"],\n        data: [diffHistory]\n    }]\n};\n\nconst msgTemp = { \n    payload: [{\n        series: [\"環境温度 (temp)\"],\n        data: [tempHistory]\n    }]\n};\n\n// 1番ポートからdiff、2番ポートからtempを出力します\nreturn [msgDiff, msgTemp];\n\n\n\n\n\n\n\n\n\n\n\n","outputs":2,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":680,"y":420,"wires":[["33536a5fece05a92"],["6e52e4e0f7bc9924"]]},{"id":"33536a5fece05a92","type":"ui_chart","z":"d82e95bcac67f954","name":"","group":"69e2427cbeda8fbd","order":3,"width":0,"height":0,"label":"Intensity","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"","ymax":"","removeOlder":"1","removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":1080,"y":400,"wires":[[]]},{"id":"dd3da730d9cd71f1","type":"function","z":"d82e95bcac67f954","name":"rain -> set \"1\"   fine -> set \"0\"","func":"var status = msg.payload.rain;\nif (status == 1) global.set(\"rain_status\",\"1\");\nelse if (status == 0) global.set(\"rain_status\", \"0\");\nmsg.payload = \"5\";\nreturn msg;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":680,"y":220,"wires":[["be88932e09ba2474"]]},{"id":"6e52e4e0f7bc9924","type":"ui_chart","z":"d82e95bcac67f954","name":"","group":"69e2427cbeda8fbd","order":5,"width":0,"height":0,"label":"Temperature","chartType":"line","legend":"false","xformat":"HH:mm:ss","interpolate":"linear","nodata":"","dot":false,"ymin":"-5","ymax":"55","removeOlder":"1","removeOlderPoints":"","removeOlderUnit":"3600","cutout":0,"useOneColor":false,"useUTC":false,"colors":["#1f77b4","#aec7e8","#ff7f0e","#2ca02c","#98df8a","#d62728","#ff9896","#9467bd","#c5b0d5"],"outputs":1,"useDifferentColor":false,"className":"","x":1090,"y":440,"wires":[[]]},{"id":"347b545b24a538ab","type":"function","z":"d82e95bcac67f954","name":"送信タイミング待ち","func":"// Node-REDのフローメモリから、送信待ちバッファオブジェクトを取得（なければ新規作成）\nlet queue = flow.get(\"esp32_pending_queue\") || {};\n\n// =============================================\n// パターンA: ユーザーが各種設定ボタンをクリックしたとき\n// =============================================\nif (msg.topic === \"rainth\" || msg.topic === \"heaterth\" || msg.topic === \"heater\" || msg.topic === \"learning\" || msg.topic === \"reset\") {\n    // どのボタンが押されたかに応じて、メモリに値をプールする\n    queue[msg.topic] = msg.payload;\n    flow.set(\"esp32_pending_queue\", queue);\n\n    // 画面上に現在たまっている待機中の設定一覧を表示\n    let txt = \"待機中: \" + JSON.stringify(queue);\n    node.status({ fill: \"blue\", shape: \"dot\", text: txt });\n\n    // まだESP32へは送信しない\n    return null;\n}\n\n// =============================================\n// パターンB: ESP32からデータが届いたとき（WiFi開通の瞬間！）\n// =============================================\nif (msg.topic === \"rain_sensor/time_div10/data\") {\n\n    // 送信待ちの設定が1つでもあるかチェック\n    if (Object.keys(queue).length > 0) {\n\n        // 複数のMQTTメッセージを連続して出力するための配列を用意\n        let outputMessages = [];\n\n        // メモリにたまっている設定を1つずつ取り出してMQTTメッセージを組み立てる\n        for (let key in queue) {\n            if (queue[key] !== null) {\n                outputMessages.push({\n                    topic: \"rain_sensor/time_div10/\" + key, // 例: rain_sensor/sync125/rainth\n                    payload: queue[key].toString()       // 文字列として安全に送信\n                });\n            }\n        }\n\n        // 送信が確定したので、メモリの待機バッファを完全に空にする\n        flow.set(\"esp32_pending_queue\", {});\n        node.status({ fill: \"green\", shape: \"ring\", text: \"全設定を一斉送信完了！\" });\n\n        // 組み立てた複数のメッセージを出力（MQTT outへ同時に一斉射撃されます）\n        return [outputMessages];\n    }\n}\n\nreturn null;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":840,"y":720,"wires":[["95789ffaf9ddd403","4e976c9d572a927e"]]},{"id":"4e976c9d572a927e","type":"debug","z":"d82e95bcac67f954","name":"debug 4","active":false,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":1020,"y":780,"wires":[]},{"id":"f9a80ab5a163104d","type":"ui_template","z":"d82e95bcac67f954","group":"69e2427cbeda8fbd","name":"今の天気","order":1,"width":14,"height":2,"format":"<p> </p>\n<p><img style=\"display: block; margin-top: auto; margin-bottom: auto; margin-left: auto; margin-right: auto;\" src={{msg.payload}} width=\"85\" height=\"85\"/>\n</p>","storeOutMessages":true,"fwdInMessages":true,"resendOnRefresh":true,"templateScope":"local","className":"","x":798.0000648498535,"y":116.00004005432129,"wires":[[]]},{"id":"057c6df505c7a0d5","type":"comment","z":"d82e95bcac67f954","name":"システムリセット","info":"","x":213.99987030029297,"y":967.9999198913574,"wires":[]},{"id":"72c3c54776cb98df","type":"function","z":"d82e95bcac67f954","name":"保存","func":"var sun = String(msg.payload);\nglobal.set(\"sun_pat\",sun);\nreturn msg;","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":248.00006484985352,"y":56.00004005432129,"wires":[["be88932e09ba2474"]]},{"id":"5ce867248f6d97f5","type":"function","z":"d82e95bcac67f954","name":"Y軸　0-1400","func":"// 1. 0-1400目盛りに設定\nmsg.ui_control = {\n    ymax: 1400,\n    ymin: 0\n};\n\n// 2. ラズパイのメモリ(flow)から、現在貯まっているdiffの履歴を引っ張ってくる\n// ※前回のFunctionノードで保存している変数名に合わせています\nconst diffHistory = flow.get(\"diffHistory\") || [];\n\n// 3. 目盛り変更と同時に、現在のデータをチャートに再認識させて一瞬でグラフを再描画する\nmsg.payload = [{\n    series: [\"検波差分 (diff)\"],\n    data: [diffHistory]\n}];\n\nreturn msg;\n\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":890,"y":360,"wires":[["33536a5fece05a92"]]},{"id":"08a73af22c18cd7d","type":"function","z":"d82e95bcac67f954","name":"Y軸　0-60","func":"// 1. 0-60目盛りに設定\nmsg.ui_control = {\n    ymax: 60,\n    ymin: 0\n};\n\n// 2. ラズパイのメモリ(flow)から、現在貯まっているdiffの履歴を引っ張ってくる\n// ※前回のFunctionノードで保存している変数名に合わせています\nconst diffHistory = flow.get(\"diffHistory\") || [];\n\n// 3. 目盛り変更と同時に、現在のデータをチャートに再認識させて一瞬でグラフを再描画する\nmsg.payload = [{\n    series: [\"検波差分 (diff)\"],\n    data: [diffHistory]\n}];\n\nreturn msg;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":890,"y":320,"wires":[["33536a5fece05a92"]]},{"id":"6ef6bc479452e016","type":"inject","z":"d82e95bcac67f954","name":"Y軸　0-60","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":680,"y":320,"wires":[["08a73af22c18cd7d"]]},{"id":"af77f662e492ed66","type":"inject","z":"d82e95bcac67f954","name":"Y軸　0-1400","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":690,"y":360,"wires":[["5ce867248f6d97f5"]]},{"id":"2a39b0497673b0b1","type":"inject","z":"d82e95bcac67f954","name":"Y軸　フリー目盛","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":700,"y":280,"wires":[["9d0a01b8586368bb"]]},{"id":"9d0a01b8586368bb","type":"function","z":"d82e95bcac67f954","name":"Y軸　フリー目盛","func":"// 1. フリー目盛りに戻す設定\nmsg.ui_control = {\n    ymax: \"\",\n    ymin: \"\"\n};\n\n// 2. ラズパイのメモリ(flow)から、現在貯まっているdiffの履歴を引っ張ってくる\n// ※前回のFunctionノードで保存している変数名に合わせています\nconst diffHistory = flow.get(\"diffHistory\") || [];\n\n// 3. 目盛り変更と同時に、現在のデータをチャートに再認識させて一瞬でグラフを再描画する\nmsg.payload = [{\n    series: [\"検波差分 (diff)\"],\n    data: [diffHistory]\n}];\n\nreturn msg;\n\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":910,"y":280,"wires":[["33536a5fece05a92"]]},{"id":"ee9dfd8410e5c828","type":"inject","z":"d82e95bcac67f954","name":"baseline学習","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"learning","payload":"1","payloadType":"str","x":411.9999351501465,"y":923.9999599456787,"wires":[["347b545b24a538ab"]]},{"id":"87155f188fc5c79f","type":"comment","z":"d82e95bcac67f954","name":"baseline学習","info":"","x":193.99987030029297,"y":927.9999198913574,"wires":[]},{"id":"9367f40b54ef9343","type":"function","z":"d82e95bcac67f954","name":"autoheater","func":"var heater = msg.payload.autoheater;\nmsg.payload = heater;\nreturn msg;","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":670,"y":460,"wires":[["6e52e4e0f7bc9924","bf0409dcccb950a9"]]},{"id":"bf0409dcccb950a9","type":"ui_template","z":"d82e95bcac67f954","group":"69e2427cbeda8fbd","name":"","order":3,"width":0,"height":0,"format":"<!-- 1. 表示用のテキスト（HTML） -->\n<div class=\"temp-status-container\">\n    <span class=\"temp-label\" ng-class=\"{'heater-on': msg.payload > 0, 'heater-off': msg.payload == 0}\">\n        Temperature (ヒーター: {{msg.payload > 0 ? msg.payload + '分' : 'OFF'}})\n    </span>\n</div>\n\n<!-- 2. 動的に色を切り替えるためのデザイン（CSS） -->\n<style>\n    /* 文字色のルール設定 */\n    /* OFFのとき：白文字 */\n    .temp-label.heater-off {\n        color: #ffffff !important;\n        font-weight: bold;\n        font-size: 16px;\n    }\n\n    /* ONのとき：白文字（背景が暗いダッシュボード用。もし背景が白い場合は好みの色に変更可） */\n    .temp-label.heater-on {\n        color: #ffffff !important;\n        font-weight: bold;\n        font-size: 16px;\n        background-color: #ff3333;\n        /* ONのときは文字の背景に赤座布団を敷いて目立たせる */\n        padding: 2px 6px;\n        border-radius: 4px;\n    }\n\n    /* 【応用】グラフ全体の背景色をヒーターONの時だけうっすら赤く染める設定 */\n    /* あなたの環境のチャートのクラス名に合わせて自動適用されます */\n    .nr-dashboard-chart {\n        transition: background-color 0.5s ease;\n        /* 色変化を滑らかにする */\n    }\n</style>\n\n<!-- 3. バックグラウンドでグラフの背景色を制御するJavaScript -->\n<script>\n    (function(scope) {\n        scope.$watch('msg', function(msg) {\n            if (!msg) return;\n            \n            // チャートのDOM（画面要素）を全検索\n            const charts = document.querySelectorAll('.nr-dashboard-chart');\n            \n            charts.forEach(function(chart) {\n                // 今回は「環境温度 (temp)」というタイトルのチャートを探す、または全チャートに適用\n                if (msg.payload > 0) {\n                    // ヒーターON（0以外）なら、グラフ背景をうっすら警戒色の赤にする\n                    chart.style.backgroundColor = 'rgba(255, 0, 0, 0.08)'; \n                } else {\n                    // ヒーターOFF（0）なら、透明（通常時）に戻す\n                    chart.style.backgroundColor = 'transparent';\n                }\n            });\n        });\n    })(scope);\n</script>","storeOutMessages":true,"fwdInMessages":true,"resendOnRefresh":true,"templateScope":"local","className":"","x":920,"y":480,"wires":[[]]},{"id":"01810c67cfb94e89","type":"function","z":"d82e95bcac67f954","name":"1時間ごとにdeff(Intensity)値をcvsファイルに書き出す。","func":"// --- 1時間自動集計・CSV保存ロジック（開始・停止ボタン対応版） ---\n\n// メモリ(context)から現在の状態を取得\nlet isRunning = context.get(\"isRunning\") || false;\nlet hourlySum = context.get(\"hourlySum\") || 0.0;\nlet lastLogHour = context.get(\"lastLogHour\") || -1;\n\n// 1. Injectボタンからメッセージが届いた場合の処理\nif (msg.payload === \"start\") {\n    isRunning = true;\n    context.set(\"isRunning\", isRunning);\n    node.status({ fill: \"green\", shape: \"dot\", text: \"集計中: 現在値 \" + hourlySum.toFixed(1) });\n    return null; // ボタンを押した瞬間はCSV出力しないのでここで終了\n}\n\nif (msg.payload === \"stop\") {\n    isRunning = false;\n    context.set(\"isRunning\", isRunning);\n    node.status({ fill: \"red\", shape: \"dot\", text: \"計測停止中\" });\n    return null; // ボタンを押した瞬間は終了\n}\n\n// 2. 状態が「停止中」なら、MQTTからデータが来てもすべて無視する\nif (!isRunning) {\n    node.status({ fill: \"red\", shape: \"dot\", text: \"計測停止中\" });\n    return null;\n}\n\n// 3. MQTTからデータが届いた場合の集計処理\nif (msg.payload && msg.payload.data) {\n    const points = msg.payload.data.split('|');\n\n    // この55秒間の受信データの diff をすべて足し算する\n    for (let i = 0; i < points.length; i++) {\n        const p = points[i].trim();\n        if (p === \"\") continue;\n        const values = p.split(',');\n        if (values.length < 2) continue;\n\n        const diffVal = parseFloat(values[0]); // diff値\n        if (!isNaN(diffVal)) {\n            hourlySum += diffVal;\n        }\n    }\n    context.set(\"hourlySum\", hourlySum);\n\n    // 現在の集計合計値をリアルタイムにノードの下に表示\n    node.status({ fill: \"green\", shape: \"dot\", text: \"集計中: 現在値 \" + hourlySum.toFixed(1) });\n}\n\n// 4. 「毎正時（00分）」になったかどうかのチェック\nconst now = new Date();\nconst currentHour = now.getHours();\nconst currentMinute = now.getMinutes();\n\n// 起動直後の最初の正時判定のための初期化\nif (lastLogHour === -1) {\n    lastLogHour = currentHour;\n    context.set(\"lastLogHour\", lastLogHour);\n}\n\n// 【正時判定】時間が変わり、かつ分が0分になった場合\nif (currentHour !== lastLogHour && currentMinute === 0) {\n\n    // 日本時間のタイムスタンプ文字列を作成 (YYYY-MM-DD HH:00:00)\n    const year = now.getFullYear();\n    const month = String(now.getMonth() + 1).padStart(2, '0');\n    const date = String(now.getDate()).padStart(2, '0');\n    const logHour = String(lastLogHour).padStart(2, '0'); // 集計していた時間帯の「時」\n\n    const timestampStr = `${year}-${month}-${date} ${logHour}:00:00`;\n\n    // CSVの1行を作成 (日時, diffの1時間合計値)\n    const csvLine = `${timestampStr},${hourlySum.toFixed(2)}\\n`;\n\n    // 次の時間のためにカウンターをリセット\n    context.set(\"hourlySum\", 0.0);\n    context.set(\"lastLogHour\", currentHour);\n\n    // 次の「fileノード」にCSV文字列を渡して書き込ませる\n    return { payload: csvLine };\n}\n\nreturn null;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":990,"y":540,"wires":[["f8020b58d341e333"]]},{"id":"f8020b58d341e333","type":"file","z":"d82e95bcac67f954","name":"","filename":"/home/pi/rain_mmh.csv","filenameType":"str","appendNewline":false,"createDir":false,"overwriteFile":"false","encoding":"none","x":1390,"y":540,"wires":[[]]},{"id":"f0907cb9210464df","type":"inject","z":"d82e95bcac67f954","name":"開始->1時間ごとにdeff(Intensity)値をcvsファイルに書き出す。","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"toggle_monitor","payload":"start","payloadType":"str","x":450,"y":540,"wires":[["01810c67cfb94e89"]]},{"id":"9286f9b3a6af67d2","type":"inject","z":"d82e95bcac67f954","name":"計測停止","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"toggle_monitor","payload":"stop","payloadType":"str","x":280,"y":580,"wires":[["01810c67cfb94e89"]]},{"id":"1da5f761ba0a94b8","type":"comment","z":"d82e95bcac67f954","name":"ドライ閾値","info":"","x":240,"y":800,"wires":[]},{"id":"4a88cd5e50a98ad0","type":"inject","z":"d82e95bcac67f954","name":"ドライ　閾値設定　(デフォルト値　38)","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"heaterth","payload":"38","payloadType":"str","x":488.0000648498535,"y":796.0000400543213,"wires":[["347b545b24a538ab"]]},{"id":"cf1776747da46a7c","type":"mqtt-broker","name":"","broker":"192.168.1.100","port":1883,"clientid":"","autoConnect":true,"usetls":false,"protocolVersion":4,"keepalive":60,"cleansession":true,"autoUnsubscribe":true,"birthTopic":"","birthQos":"0","birthRetain":"false","birthPayload":"","birthMsg":{},"closeTopic":"","closeQos":"0","closeRetain":"false","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willRetain":"false","willPayload":"","willMsg":{},"userProps":"","sessionExpiry":""},{"id":"9ded4b95213fa421","type":"mqtt-broker","name":"","broker":"192.168.1.200","port":"1883","clientid":"","autoConnect":true,"usetls":false,"protocolVersion":4,"keepalive":60,"cleansession":true,"autoUnsubscribe":true,"birthTopic":"","birthQos":"0","birthRetain":"false","birthPayload":"","birthMsg":{},"closeTopic":"","closeQos":"0","closeRetain":"false","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willRetain":"false","willPayload":"","willMsg":{},"userProps":"","sessionExpiry":""},{"id":"69e2427cbeda8fbd","type":"ui_group","name":"降雨センサー","tab":"0295dbb1aeae00da","order":1,"disp":true,"width":14,"collapse":false,"className":""},{"id":"0295dbb1aeae00da","type":"ui_tab","name":"天気","icon":"dashboard","disabled":false,"hidden":false},{"id":"32569249dd57a829","type":"global-config","env":[],"modules":{"node-red-dashboard":"3.6.6"}}]

    /**
     * All static routes will be appended to httpStaticRoot
     * e.g. if httpStatic = "/home/nol/docs" and  httpStaticRoot = "/static/"
     *      then "/home/nol/docs" will be served at "/static/"
     * e.g. if httpStatic = [{path: '/home/nol/pics/', root: "/img/"}]
     *      and httpStaticRoot = "/static/"
     *      then "/home/nol/pics/" will be served at "/static/img/"
     */
    //httpStaticRoot: '/static/',
    httpStatic: '/home/pi/Public/',


    /**
     * All static routes will be appended to httpStaticRoot
     * e.g. if httpStatic = "/home/nol/docs" and  httpStaticRoot = "/static/"
     *      then "/home/nol/docs" will be served at "/static/"
     * e.g. if httpStatic = [{path: '/home/nol/pics/', root: "/img/"}]
     *      and httpStaticRoot = "/static/"
     *      then "/home/nol/pics/" will be served at "/static/img/"
     */
    //httpStaticRoot: '/static/',
    httpStatic: '/home/pi/Public/',
